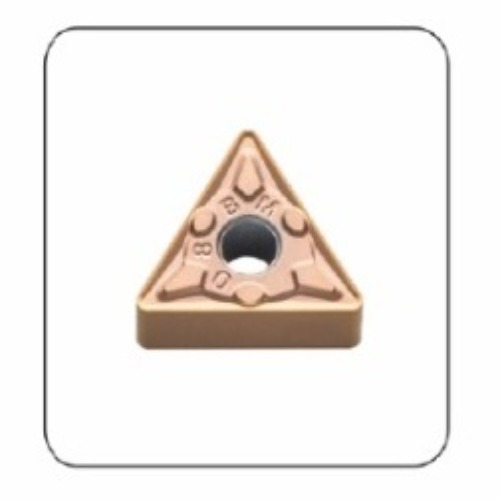

TDC carbide insert

About TDC carbide insert

Carbide inserts are small, replaceable, high-hardness cutting tools made of tungsten carbide and cobalt, primarily used in lathes, mills, and drills for machining hard materials like steel, cast iron, and alloys. These indexable tools increase productivity by offering high wear resistance and enabling faster cutting speeds, often with multiple edges that can be rotated when worn. [1, 2, 3, 4, 5]

Key Characteristics and Components

• Material: Comprised of cemented carbide, combining high hardness (HRA 89-93) with toughness to resist cutting forces.
• Shapes: Common shapes include Triangle (T), Diamond (C, D), Square (S), and Round (R), each suitable for specific operations like boring, turning, or profiling.
• Designation Code (e.g., CNMG 120408):
• Shape: C (Diamond 80).
• Clearance Angle: N (0).
• Tolerance: M (Tolerance class).
• Type: G (With hole and chip breaker).
• Size: 12 (Approx. 12mm edge length).
• Thickness: 04 (Approx. 4.76mm).
• Radius: 08 (0.8mm nose radius). [1, 6, 7, 8, 9]

Selection Factors

• Material Application: Represented by letters, such as P (Steel), M (Stainless), K (Cast Iron), and S (Heat-resistant alloys).
• Operation: Roughing requires stronger, thicker inserts with larger radii, while finishing requires smaller radii for better surface quality.
• Tool Holder: The insert shape must match the corresponding tool holder's geometry. [6, 7, 10, 11]

Key Advantages

• High Wear Resistance: Lasts 5-100 times longer than high-speed steel.
• High Heat Resistance: Maintains structural integrity at high temperatures.
• Efficiency: Allows for faster production and improved surface finishes. [1, 2]

AI responses may include mistakes.

[1] https://www.cycarbide.com/types-characteristics-and-applications-of-carbide-insert.html

[2] https://www.kingcarbide.com/article/what-are-carbide-cutting-inserts-and-how-are-they-used-newsinfo-61.html

[3] https://huanatools.com/what-are-carbide-inserts-and-how-are-carbide-inserts-made/

[4] https://www.mmc-carbide.com/us/technical_information/tec_guide/tec_guide_carbide

[5] https://www.mscdirect.co.uk/holemaking-drilling-tools/indexable-drills/indexable-drill-inserts

[6] https://www.youtube.com/watch?v=FGDM2yxkbos

[7] https://www.youtube.com/watch?v=_YDw2_WqCMY

[8] https://www.youtube.com/watch?v=JDpBf6DySUE

[9] https://huanatools.com/how-to-choose-the-right-carbide-inserts/

[10] https://www.estoolcarbide.com/article/how-to-understand-the-type-of-carbide-inserts-newsinfo-29.html

[11] https://www.cargo.org.in/blog/what-are-cnmg-insert

Unmatched Durability and Performance

With its tungsten carbide construction and CVD coating, the TDC chipbreaker insert stands up to the toughest machining environments. Its high tensile strength and hardness rating of 90 HRA mean it's built for both medium and heavy-duty applications, offering exceptional longevity and reliability for industrial use.


Versatile Application for Industrial Needs

This insert is meticulously engineered for compatibility with ISO standard toolholders, making it a go-to choice for manufacturers, exporters, retailers, and wholesalers across India. Its capacity to handle high loads and resist corrosion ensures broad utility in turning, milling, and cutting processes, meeting diverse industrial machining requirements.
